LOWER LINK PIN LIFT ARM PIN

Category:

Description

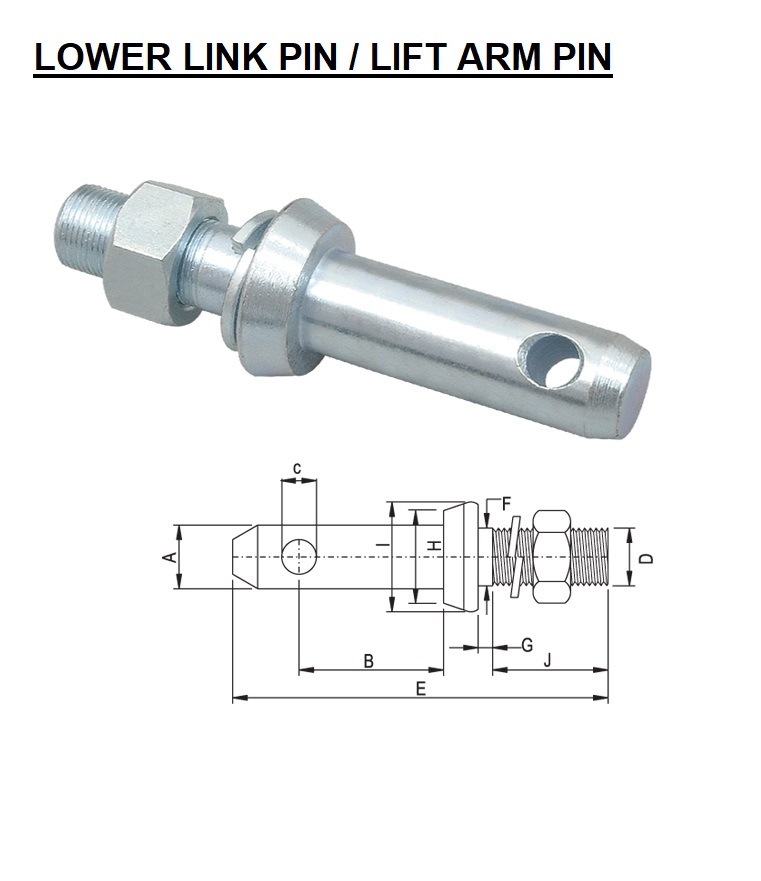

LOWER LINK PIN / LIFT ARM PIN
CODE A B C D E F G H I J
LLP22-18M 22 46 12 M18X1.5 133 18 5 31 37 45
LLP2218M 22 46 12 M20X1.5 130 20 5 30 36 46
LLP2211M 22 51 12 M20X1.5 128 20 10 30 36 38
LLP2201M 22 51 12 M20X1.5 130 20 5 30 36 40
LLP2202M 22 51 12 M22X1.5 140 22 14 30 38 40
LLP2205U 22 51 12 3/4″UNF 140 19 6 30 36 48
LLP2206U 22 51 12 5/8″ UNF 140 22 11 30 36 43
LLP2210U 22 51 12 7/8″UNF 138 28.6 14 30 36 38
LLP2216U 22 51 12 7/8″UNF 140 22 5 30 36 46
LLP2207U 22 51 12 7/8″UNF 146 28.6 22 30 36 38
LLP2204U 22 51 12 7/8″UNF 149 22 11 30 36 54
LLP2209U 22 51 12 1″UNF 146 24 9.5 30 36 51
LLP22-22M 22 60 12 M22X1.5 146 22 16 31 38 40
LLP22-24M 22 60 12 M22X1.5 146 24 16 38 44 40
LLP22-25M 22 60 12 M22X1.5 146 25 16 38 44 40
LLP22-28M 22 60 12 M22X1.5 146 28 16 38 44 40
LLP25-22M 25 60 12 M22X1.5 146 22 16 38 44 40
LLP25-25M 25 60 12 M22X1.5 146 25 16 38 44 40
LLP25-28M 25 60 12 M22X1.5 146 28 16 38 44 40
LLP28-22M 28 60 12 M22X1.5 146 22 16 38 44 40
LLP28-24M 28 60 12 M22X1.5 146 24 16 38 44 40
LLP28-25M 28 60 12 M22X1.5 146 25 16 38 44 40
LLP28-28M 28 60 12 M22X1.5 146 28 16 38 44 40
LLP2822M 28 55 12 M24X1.5 150 24 15 38 44 45
LLP2823M 28 55 12 M27X1.5 150 28 14 38 44 45
LLP2824M 28 58 12 M27X1.5 147 27 10 38 44 48
LLP2845M 28 60 12 M27X1.5 140 28 15 38 44 35
LLP2836U 28.6 51 12 3/4″UNF 141 25.4 24 38 44 36.5
LLP2840U 28.6 60 12 3/4″UNF 149 19 6 38 44 54
LLP2842U 28.6 60 12 7/8″UNF 136.5 22 12.7 38 44 35
LLP2843U 28.6 60 12 7/8″UNF 146 22 12.7 38 44 44
LLP2841U 28.6 60 12 7/8″UNF 149 28.6 22 38 44 38
LLP2839U 28.6 60 12 1″UNF 149 25.4 9.5 38 44 51
LLP2837U 28.6 57 12 9/8″UNF 159 28.6 16 38 44 60
LLP2838U 28.6 60 12 9/8″ UNF 149 28.6 9.5 38 44 51
LLP3845U 36 54 12 9/8″UNF 149 28.6 16 46 52 48
LLP3642M 36.5 61 12 M27X1.5 165 27 11 46 52 60
